- Product name: SDMT inserts
- Series: SDMT
- Chip-Breakers: GM / GH
description
Product Information:
High feed milling tools save time by avoiding semi finishing and reducing tool
changes. Our expansive range of high feed milling solutions meets all application

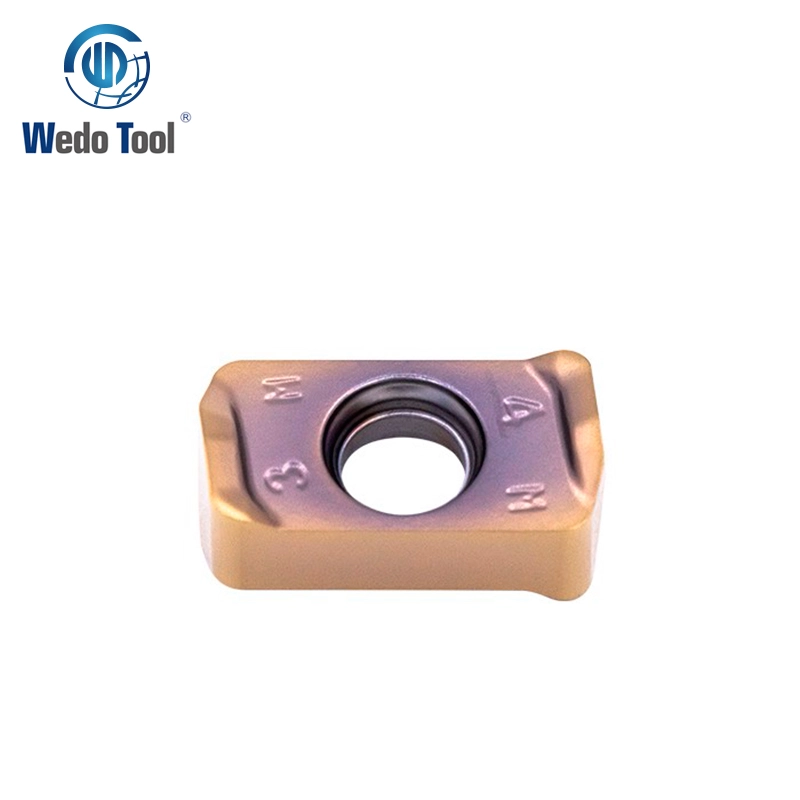

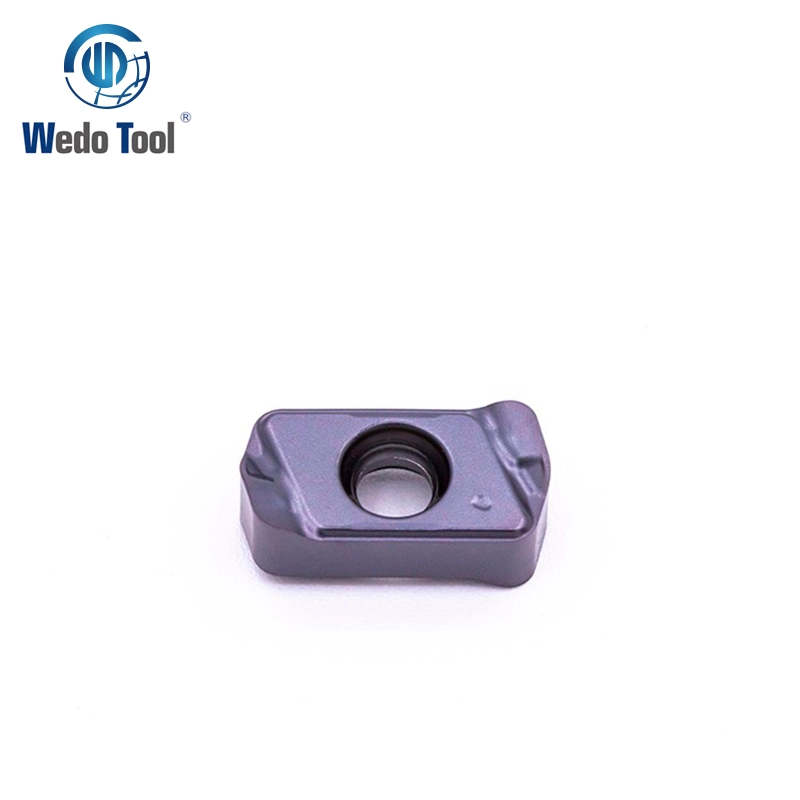

needs.LNMU insert is one kind of high feed milling insert. Double-sided fast feed, 4 edges is very cost-effective. Good wear and abrasive resistance. Precision ground and polished Milling inserts.
Specifications:
Type | Ap (mm) | Fn (mm/rev) | CVD | PVD | |||||||||
WD3020 | WD3040 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1520 | WR1525 | WR1028 | WR1330 | |||
LNMU0303ZER-GM | 0.20-2.00 | 0.50-1.30 | ● | ● | O | O | |||||||
● : Recommended Grade
O: Optional Grade
Application

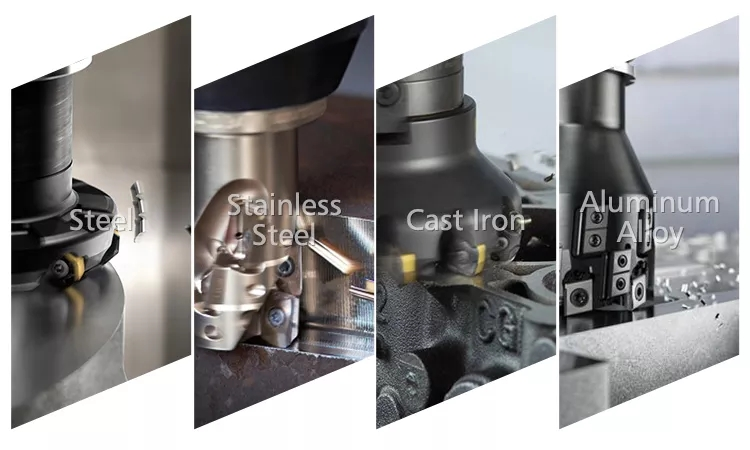

The type of carbide grade and the coating on inserts are originally intended for milling stainless steel, but it also works when milling other alloys.
FAQ:
What is helical milling?
Helical milling is a hole-making process, the milling tool proceeds a helical path while rotates around its own axis, presenting several advantages in relation to conventional drilling. The helical path can be decomposed into axial and tangential directions, combining frontal and peripheral cutting.
How do I choose the milling insert?
Selecting the milling insert based on the application of demands and the space for the cutting tools. the larger of the insert.the better of the stability . For heavy machining, the insert size is normally above 1 inch. finishing, the size cans be reduced.
