- Product name: WNMU inserts
- Series: WNMU
- Chip-Breakers: GM
description
Product Information:
Shoulder milling cutters are indexable designed with wedge type clamping or screw-on type clamping to achieve high-quality machining.

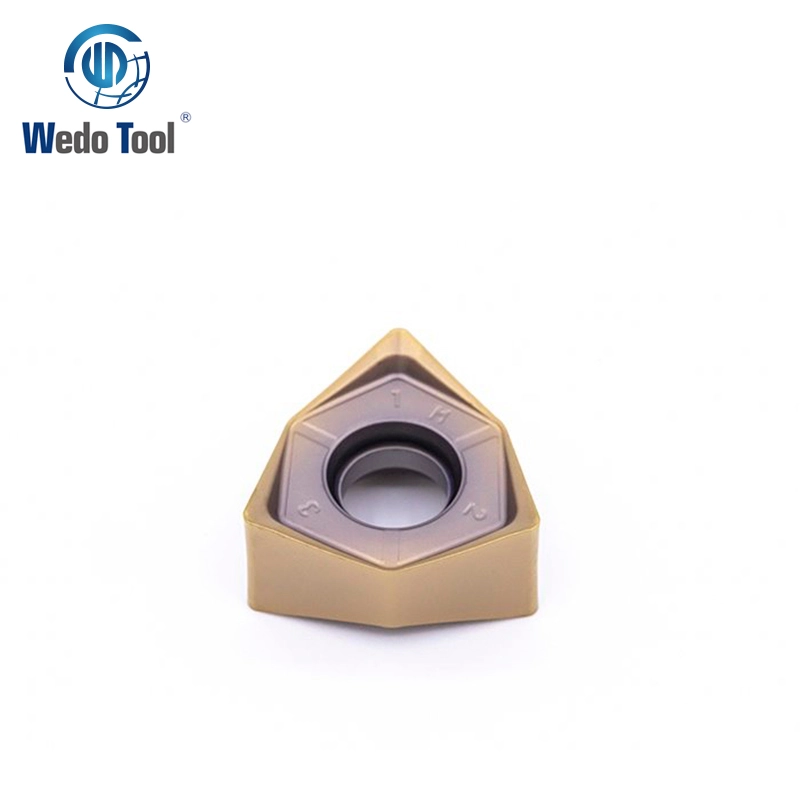

WNMU is one kind of double-sided square shoulder milling insert with sharp cutting edge and small cutting resistance. Thick specification design for stronger collapse resistance. No directional blade, left and right knife can be used; 6 double-sided blades is very economical.
Specifications:
Type | Ap (mm) | Fn (mm/rev) | CVD | PVD | |||||||||
WD 3020 | WD 3040 | WD 1025 | WD 1325 | WD 1525 | WD 1328 | WR 1010 | WR 1520 | WR 1525 | WR 1028 | WR 1330 | |||
WNMU050408EN-GM | 0.50-5.00 | 0.10-0.30 | ● | ● | O | O | |||||||
WNMU080608EN-GM | 0.80-8.00 | 0.10-0.30 | ● | ● | O | O | |||||||
● : Recommended Grade
O: Optional Grade
Application

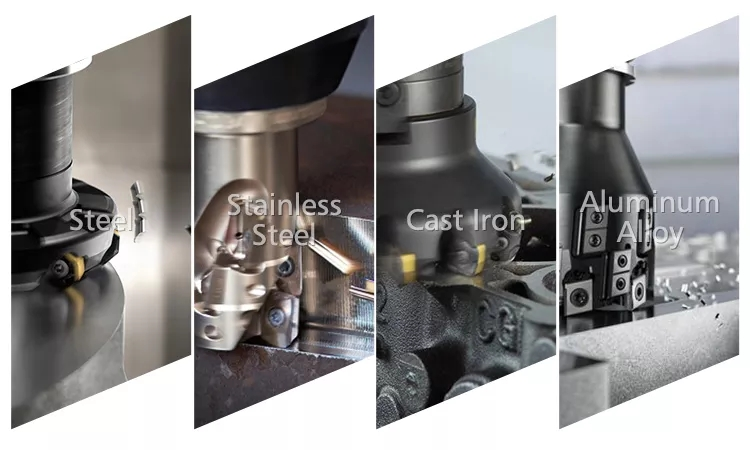

Inserts have strongly supported cutting edge. Recommended for different purposes and applications for machining steel, stainless steel.
FAQ:
What is a profile in machining?
Profile milling is a type of milling process, usually used to semi-finish or finish the vertical or slanted surfaces, including multi-axis milling of convex and concave shapes in two or three dimensions. Profile milling CNC Sequence is a 2.5 axis sequence.
How is milling done?
The milling process is removing the materials by performing many separate and small cuts. It is accomplished by using a cutter with many teeth, spinning the cutter at a high speed, or advancing the material through the cutter slowly.
