- Product name: RPMT inserts
- Series: RPMT
- Chip-Breakers: JSM/GM
description
Product Information:
Profile milling is a common milling operation.

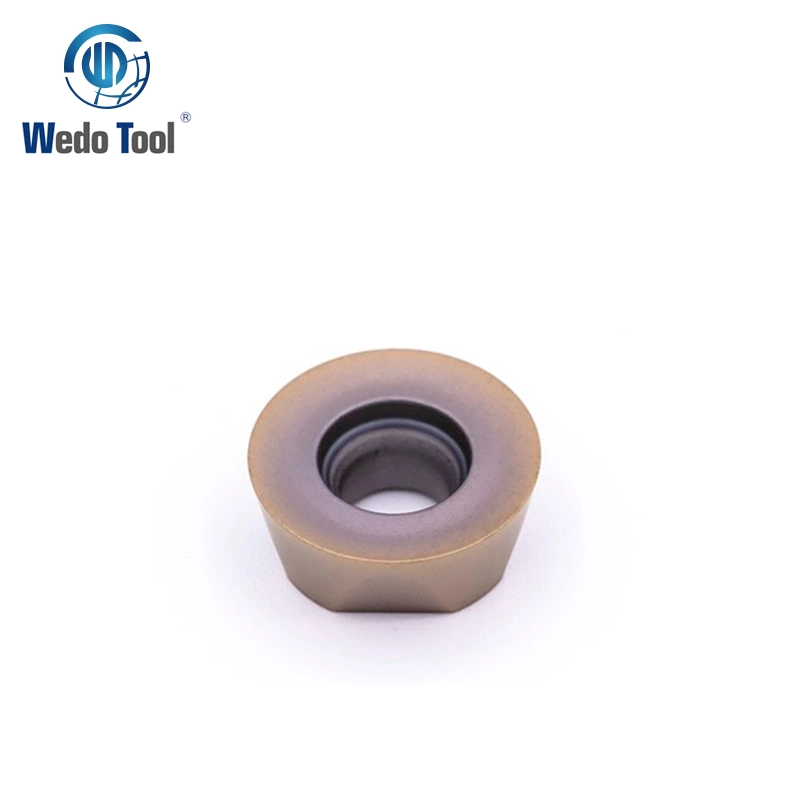

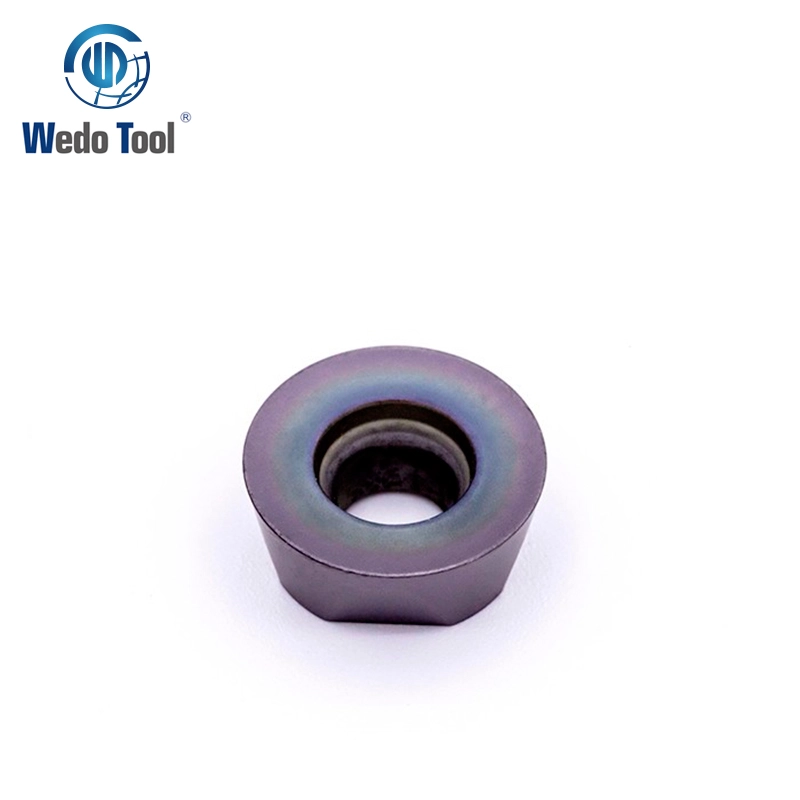

RPMT insert is one kind of profile milling insert with strong cutting edges, best reliability and long endurance.
R - Round shape of turning insert.
P - Insert with clearance under main cutting edge (11°).
M - Tolerances and dimensions of carbide turning insert.
T - Hole through insert and single sided chip breaker.
Specifications:
Type | Ap (mm) | Fn (mm/rev) | CVD | PVD | |||||||||
WD3020 | WD3040 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1520 | WR1525 | WR1028 | WR1330 | |||
RPMT08T2MOE-JSM | 1.00-1.30 | 0.05-0.25 | ● | ● | O | O | |||||||
RPMT10T3MOE-JSM | 1.50-4.00 | 0.05-0.30 | ● | ● | O | O | |||||||
RPMT1204MOE-JSM | 1.50-5.00 | 0.05-0.35 | ● | ● | O | O | |||||||
RPMT1606MOE-JSM | 2.00-6.50 | 0.10-0.40 | ● | ● | O | O | |||||||
RPMT08T2MO-GM | 1.50-4.00 | 0.10-0.30 | ● | ● | O | O | |||||||
RPMT10T3MO-GM | 1.80-5.00 | 0.10-0.50 | ● | ● | O | O | |||||||
RPMT1204MO-GM | 2.00-6.50 | 0.10-0.50 | ● | ● | O | O | |||||||
RPMT08T2MO | 1.5-4.0 | 0.1-0.3 | ● | ● | O | O | |||||||
RPMT10T3MO | 1.8-5.0 | 0.1-0.5 | ● | ● | O | O | |||||||
RPMT1204MO | 2-6.5 | 0.1-0.5 | ● | ● | O | O | |||||||
● : Recommended Grade
O: Optional Grade
Application
Round inserts and concepts with radius are milling cutters used for roughing and semi-roughing while ball nose End Mills are milling cutters used for finishing and super-finishing.

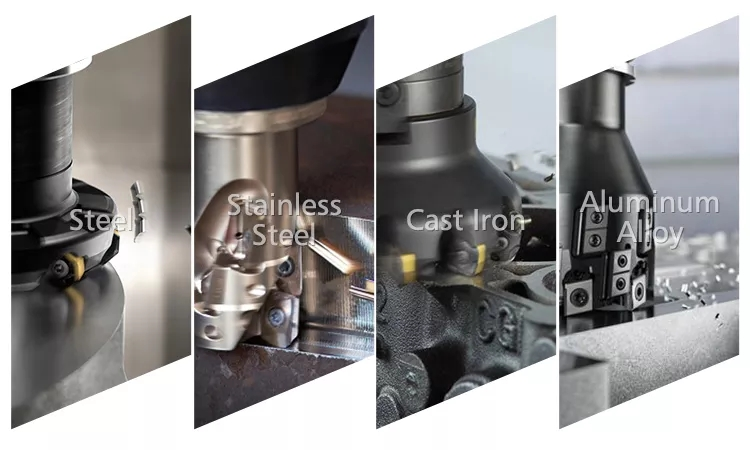

Recommend for roughing, semi-roughing, semi-finishing and finishing of steel, stainless steel, cast iron and super alloys.
FAQ:
What is a profile in machining?
Profile milling is a type of milling process, usually used to semi-finish or finish the vertical or slanted surfaces, including multi-axis milling of convex and concave shapes in two or three dimensions. Profile milling CNC Sequence is a 2.5 axis sequence.
How is milling done?
The milling process is removing the materials by performing many separate and small cuts. It is accomplished by using a cutter with many teeth, spinning the cutter at a high speed, or advancing the material through the cutter slowly.
