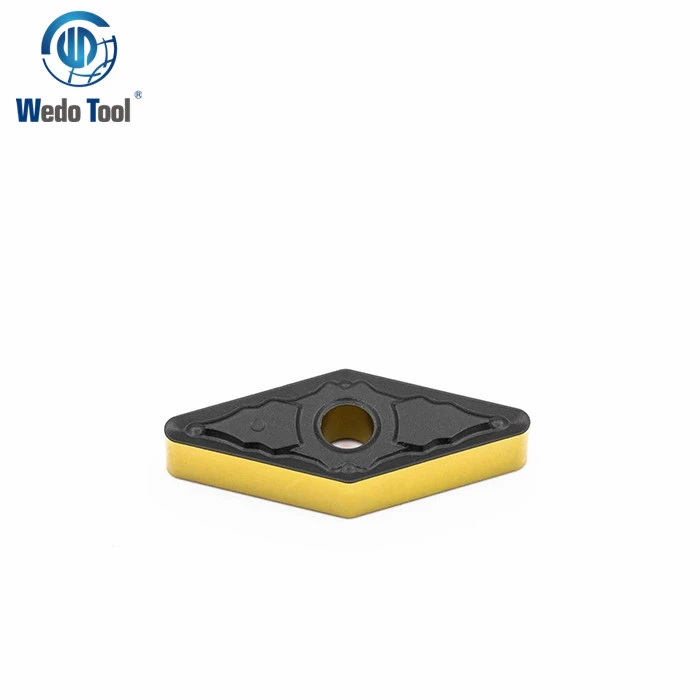

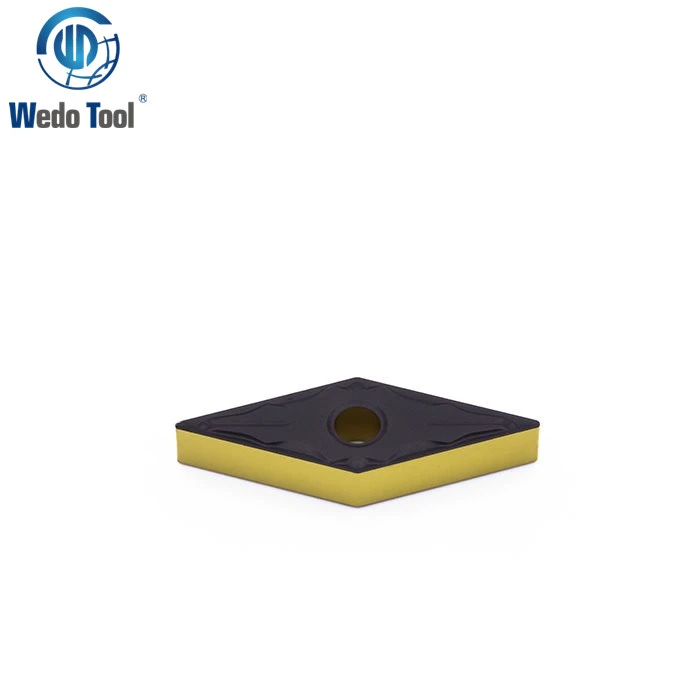

- Product name: VNMG Inserts
- Series: VNMG
- Chip-Breakers: AM//BF/CM
description
Product Information:
VNMG Insert is made of high quality alloy metal and the surface is treated by CVD coating to extend the cutting life. The unique V shape design with negative angles ensures the machining efficient and stability. The different chip breakers and grades will help it to deal with different working condition and multiple operations.
It also has the advantages of high hardness, high efficiency, high accuracy, corrosion resistance, long service life, smooth appearance.
Specifications:
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD4235 | WD4335 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | ||||
P Semi Finishing | VNMG110404-AM | 0.80-2.50 | 0.15-0.36 | ● | O | ● | O | O | |||||||
VNMG110408-AM | 1.00-2.50 | 0.17-0.36 | ● | O | ● | O | O | ||||||||
VNMG160404-AM | 0.80-3.00 | 0.15-0.36 | ● | O | ● | O | O | ||||||||
VNMG160408-AM | 1.00-2.50 | 0.17-0.36 | ● | O | ● | O | O | ||||||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | WR1525 | WR1330 | ||||
M Finishing | VNMG160404-BF | 0.25-3.30 | 0.05-0.15 | ● | ● | O | O | ||||||||
VNMG160408-BF | 0.55-3.30 | 0.10-0.30 | ● | ● | O | O | |||||||||
VNMG160412-BF | 0.75-3.30 | 0.15-0.45 | ● | ● | O | O | |||||||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||
CVD | |||||||
WD3020 | WD3040 | WD3315 | WD3415 | ||||
K Semi Finishing | VNMG160404-CM | 0.40-3.30 | 0.08-0.25 | ● | O | ||
VNMG160408-CM | 0.80-3.30 | 0.15-0.45 | ● | O | |||
VNMG160412-CM | 1.20-3.30 | 0.25-0.65 | ● | O | |||
● : Recommended Grade
O: Optional Grade
Application:
The VNMG Insert is mainly used for general turning, small part turning, milling, cutting and grooving, metal turning, thread turning, etc.
FAQ:
What is the difference between negative and positive inserts?
The difference between Negative and Positive insert lies in they with different clearance angle. The positive inserts have clearance angle between 1 degree to 90 degree. The clearance angle of negative insert is o degree .
Which insert type is the best choice for rough machining?
When you need roughing and general turning .the negative inserts are the first and best option. negative insert allows deeper depths and higher feed rates due to strong insert shapes and thickness.
