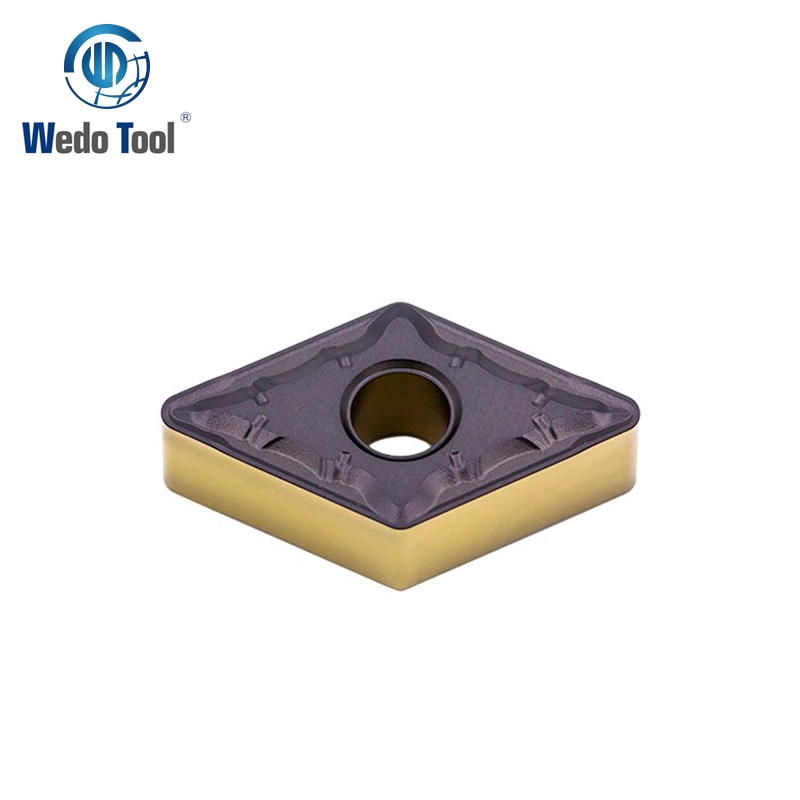

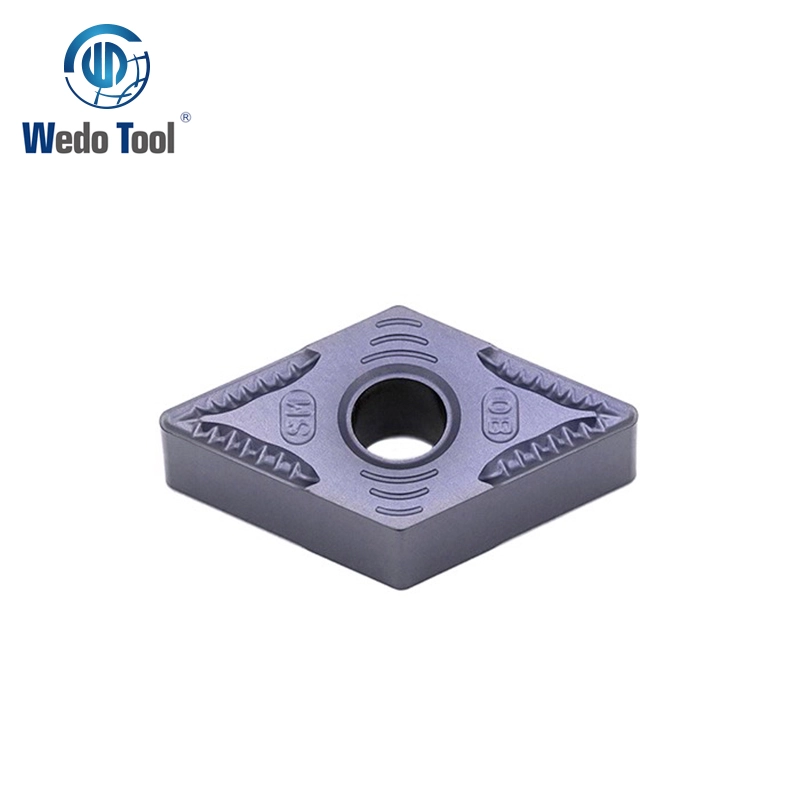

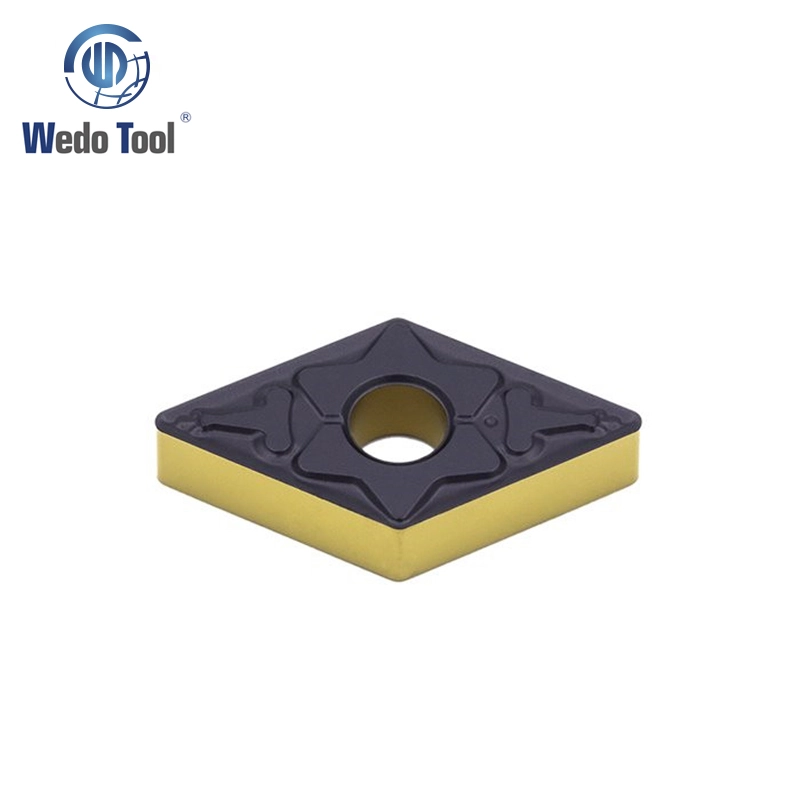

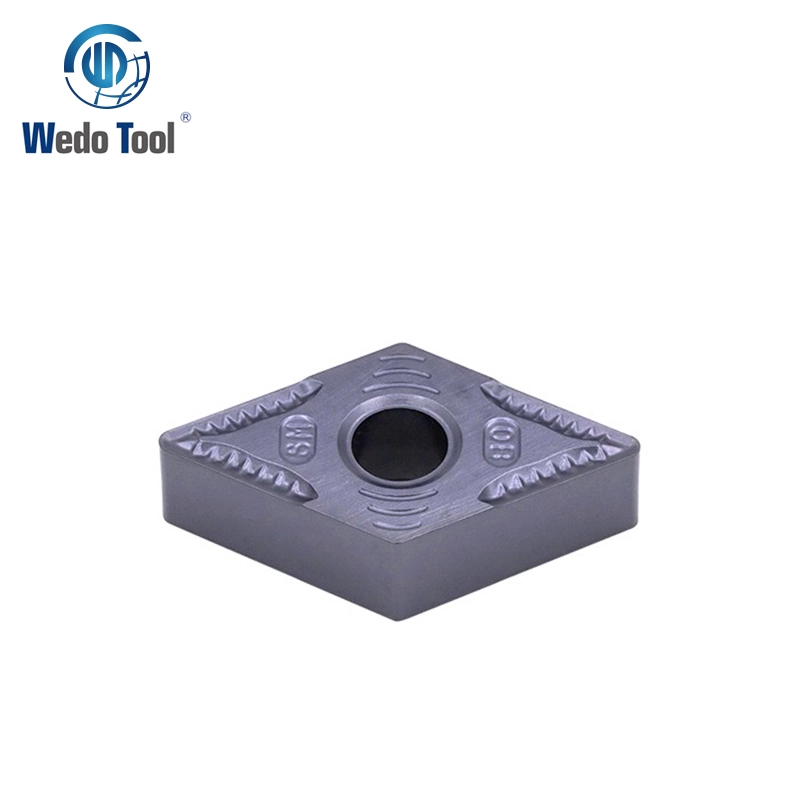

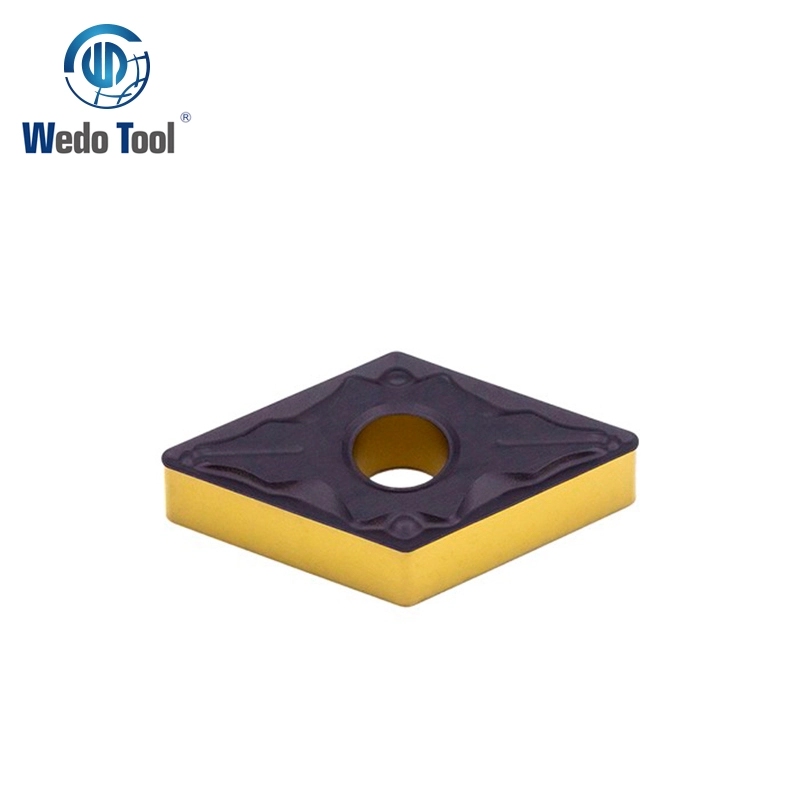

- DNMG Inserts
- Series: DNMG
- Chip-Breakers: AM/AR/AS/BF/BM/BR/CM/DM/SM/TM
description
Product Information:
DNMG insert is double-sided 55° rhombic, clearance angle 0°. with optimized substrate and coating combination,DNMG has top performance. Geometry of insert can optimized for machining application. Grade and geometry provide high reliability. Excellent wear detection ensures all edges are used.With a range of different sizes, we make it easy to select the ideal turning insert for your planned applications.
Specifications:
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD4235 | WD4335 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | ||||
P Semi Finishing | DNMG150404-AM | 0.60-5.40 | 0.10-0.30 | ● | O | ● | O | O | |||||||
DNMG150408-AM | 1.20-5.40 | 0.20-0.60 | ● | O | ● | O | O | ||||||||
DNMG150412-AM | 1.80-5.40 | 0.30-0.90 | ● | O | ● | O | O | ||||||||
DNMG150604-AM | 0.60-5.40 | 0.10-0.30 | ● | O | ● | O | O | ||||||||
DNMG150608-AM | 1.20-5.40 | 0.20-0.60 | ● | O | ● | O | O | ||||||||
DNMG150612-AM | 1.80-5.40 | 0.30-0.90 | ● | O | ● | O | O | ||||||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD4235 | WD4335 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | ||||
P Rough Machining | DNMG150408-AR | 0.80-4.0 | 0.15-0.50 | ● | O | ||||||||||
DNMG150412-AR | 1.20-4.0 | 0.15-0.65 | ● | O | |||||||||||
DNMG150608-AR | 0.80-4.0 | 0.15-0.50 | ● | O | |||||||||||
DNMG150612-AR | 1.20-4.0 | 0.15-0.65 | ● | O | |||||||||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | WR1525 | WR1330 | ||||
M Finishing | DNMG150404-BF | 0.25-2.90 | 0.05-0.15 | ● | ● | O | O | ||||||||
DNMG150408-BF | 0.50-2.90 | 0.10-0.30 | ● | ● | O | O | |||||||||
DNMG150412-BF | 0.75-2.90 | 0.15-0.45 | ● | ● | O | O | |||||||||
DNMG150604-BF | 0.25-2.90 | 0.05-0.15 | ● | ● | O | O | |||||||||
DNMG150608-BF | 0.50-2.90 | 0.10-0.30 | ● | ● | O | O | |||||||||
DNMG150612-BF | 0.75-2.90 | 0.15-0.45 | ● | ● | O | O | |||||||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | WR1525 | WR1330 | ||||
M Semi Finishing | DNMG150404-BM | 0.30-3.90 | 0.08-0.25 | O | O | ● | O | O | |||||||
DNMG150408-BM | 0.65-3.90 | 0.15-0.45 | O | O | ● | O | O | ||||||||
DNMG150412-BM | 0.95-3.90 | 0.25-0.65 | O | O | ● | O | O | ||||||||
DNMG150604-BM | 0.30-3.90 | 0.08-0.20 | O | O | ● | O | O | ||||||||
DNMG150608-BM | 0.65-3.90 | 0.15-0.45 | O | O | O | O | |||||||||
DNMG150612-BM | 0.95-3.90 | 0.25-0.65 | O | O | ● | O | O | ||||||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | WR1528 | WR1330 | ||||
M Rough Machining | DNMG150404-BR | 0.30-3.90 | 0.08-0.25 | O | O | O | ● | ● | O | ||||||
DNMG150408-BR | 0.65-3.90 | 0.15-0.45 | O | O | O | ● | ● | O | |||||||
DNMG150412-BR | 0.95-3.90 | 0.25-0.65 | O | O | O | ● | ● | O | |||||||
DNMG150604-BR | 0.30-3.90 | 0.08-0.20 | O | O | O | ● | ● | O | |||||||
DNMG150608-BR | 0.65-3.90 | 0.15-0.45 | O | O | O | ● | ● | O | |||||||
DNMG150612-BR | 0.95-3.90 | 0.25-0.65 | O | O | O | ● | ● | O | |||||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | CVD | |||
WD3020 | WD3040 | WD3315 | WD3415 | ||||
K Semi Finishing | DNMG150404-CM | 0.40-3.90 | 0.08-0.25 | ● | O | ||
DNMG150408-CM | 0.80-3.90 | 0.15-0.45 | ● | O | |||
DNMG150412-CM | 1.20-3.90 | 0.25-0.65 | ● | O | |||
DNMG150604-CM | 0.40-3.90 | 0.08-0.20 | ● | O | |||
DNMG150608-CM | 0.80-3.90 | 0.15-0.45 | ● | O | |||
DNMG150612-CM | 1.20-3.90 | 0.25-0.65 | ● | O | |||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | ||||||||||||
CVD | PVD | |||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1520 | WR1525 | WR1028 | WR1030 | ||||
S Semi Finishing | DNMG150404-DM | 0.40-3.90 | 0.08-0.25 | O | O | O | ● | ● | O | O | ||||||
DNMG150408-DM | 0.80-3.90 | 0.15-0.45 | O | O | O | ● | ● | O | O | |||||||
DNMG150412-DM | 1.20-3.90 | 0.25-0.65 | O | O | O | ● | ● | O | O | |||||||
DNMG150604-DM | 0.40-3.90 | 0.08-0.20 | O | O | O | ● | ● | O | O | |||||||
DNMG150608-DM | 0.80-3.90 | 0.15-0.45 | O | O | O | ● | ● | O | O | |||||||
DNMG150612-DM | 1.20-3.90 | 0.25-0.65 | O | O | O | ● | ● | O | O | |||||||
● : Recommended Grade
O: Optional Grade
Application:
DNMG cutting tool used for grooving, profiling, finishing, and other machining applications.
DNMG is first choice for external turning of slim workpieces , suitable for medium finishing and finishing of all types steel.
FAQ:
How to choose correct turning insert?
Select insert geometry based on operation, for example finishing. Select the insert size depending on the depth of cut.
Select the largest possible nose angle for strength and economy, the largest possible nose radius for insert strength.
What is the difference between face milling and End Milling?
These are most prevalent milling operations, using different types of cutters – the End Mill and the face mill. The difference between End Milling and face milling is that an End Mill uses both the end and the sides of the cutter, whereas face milling is used for horizontal cutting.
