- Product name: CCMT Inserts
- Series: CCMT09
- Chip-Breakers: JW/MM
description
Product Information:

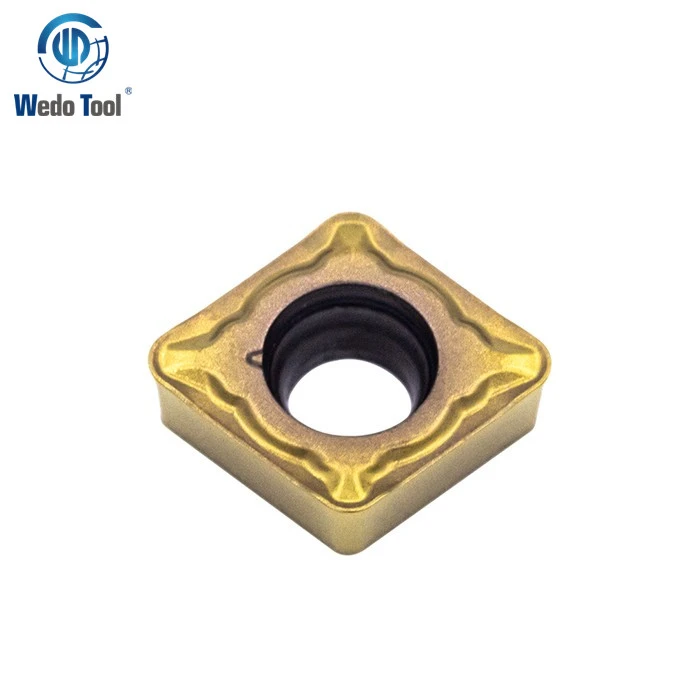

CCMT carbide insert is a 80°diamond with a 7° relief. The center hole is a 40°-60° single countersink, and a single-sided chip breaker. It has higher safety and reliability for end face machining under heavy duty interrupted cutting, vibration and unstable conditions, and is an ideal tool for machining work piece surfaces in harsh conditions. In addition, the CCMT has the advantages of high accuracy, wear resistance, corrosion resistance, long service life.
Specifications:
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD 4215 | WD 4315 | WD 4225 | WD 4325 | WD 4235 | WD 4335 | WD 1025 | WD 1325 | WD 1525 | WD 1328 | WR 1525 | WR 1010 | ||||
General Semi Finishing | CCMT09T304-JW | 0.40-3.80 | 0.05-0.18 | ● | O | ● | O | O | ● | O | O | ||||
CCMT09T308-JW | 0.80-3.20 | 0.10-0.35 | ● | O | ● | O | O | ● | O | O | |||||
| M Finishing | CCMT09T304-MM | 0.30-2.20 | 0.05-0.15 | ● | O | ● | O | ||||||||
CCMT09T308-MM | 0.60-2.40 | 0.10-0.30 | ● | O | ● | O | |||||||||
● : Recommended Grade
O: Optional Grade
Application:
The CCMT09 insert include CCMT09T304 and CCMT09T308. It’s an good choice for semi-finishing and finishing machining of steel, stainless steel and cast iron.
FAQ:
What is ccmt09 insert?
ccmt09 inserts are carbide insert with a 7° relief. Our company ccmt 09 insert include CCMT09T304 and CCMT09T308.
