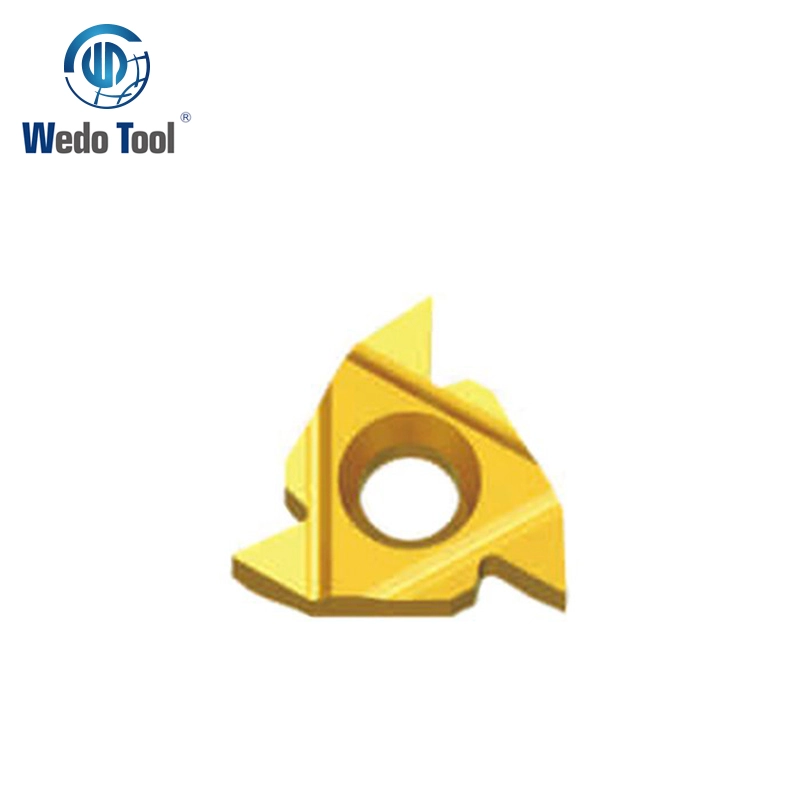

- Product name: 16IR insert
- Series: General Pitch Thread 60°
- Chip-Breakers: none
description
Product Information:
16IR Internal thread insert, material: carbide.the insert is 60 degree angle standard metric. Insert purpose is for internal turning. Orientation of insert is right. Internal threading applications in three different geometries: all-round, sharp and a chip breaking C-Geometry.Good wear resistance and edge sharpness..High abrasion performance and pertinence.
Specifications:
Type | Range of thread pitch | Insert Dimensions (mm) | Grade | |||||
mm | Pitch/Inch | IC | S | X | Y | WD1320 | WD1520 | |
16ERA60 | 0.5-1.5 | 48-16 | 9.525 | 3.52 | 0.9 | 0.8 | • | O |
16ERAG60 | 0.5-3.0 | 48-8 | 9.525 | 3.52 | 1.7 | 1.2 | • | O |
16ERG60 | 1.75-3.0 | 14-8 | 9.525 | 3.52 | 1.7 | 1.2 | • | O |
22ERN60 | 3.5-5.0 | 7-5 | 12.7 | 4.65 | 2.5 | 1.7 | • | O |
11IRA60 | 0.5-1.5 | 48-16 | 6.35 | 3.52 | 0.9 | 0.8 | • | O |
16IRA60 | 0.5-1.5 | 48-16 | 9.525 | 3.52 | 0.9 | 0.8 | • | O |
16IRAG60 | 0.5-3.0 | 48-8 | 9.525 | 3.52 | 1.7 | 1.2 | • | O |
16IRG60 | 1.75-3.0 | 14-8 | 9.525 | 3.52 | 1.7 | 1.2 | • | O |
22IRN60 | 3.5-5.0 | 7-5 | 12.7 | 4.65 | 2.5 | 1.7 | • | O |
• : Recommended Grade
O: Optional Grade
Application
Application for various steel threading operations.The type of carbide grade and the coating on inserts is originally intended for turning steel and stainless steel, but it also performs when turning other alloys.
